XS Expanded Metal is Japan Standard JIS3351 Expanded metal.XS expanded metal and XG expanded metal is popular used for Thailand and South Africa market.Standard sheet size usually 4ftx8ft,5ftx10ft.
Product parameters
When you order XS expanded metal,pls state:
Product Code: for example XS-31,XS32,XS33,etc
Sheet size:standard size 4ftx8ft, 5ftx10ft.
Weight: we will provide as your requested weight/pcs
Quantity

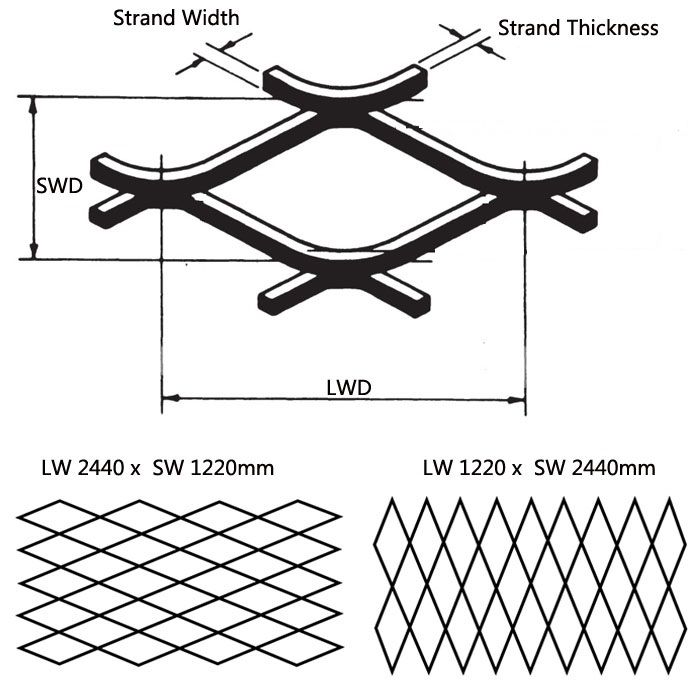

| XS Expanded Metal | Thickness (MM) | Strand (MM) | LWDXSWD (MM) | LWM (MM) | SWM (MM) |
| Expanded Metal XS-31 | 1.2 | 1.5 | 30.5x12 | 1220 | 2440 |
| Expanded Metal XS-32 | 1.6 | 2 | 30.5x12 | 1220 | 2440 |
| Expanded Metal XS-32 | 1.6 | 2 | 30.5x12 | 1220 | 2440 |
| Expanded Metal XS-33 | 2.3 | 3 | 30.5x12 | 1220 | 2440 |
| Expanded Metal XS-41 | 1.6 | 2 | 50.8x22 | 1220 | 2440 |
| Expanded Metal XS-42 | 2.3 | 2.5 | 50.8x22 | 1220 | 2440 |
| Expanded Metal XS-43 | 3.2 | 3.5 | 50.8x22 | 1220 | 2440 |
| Expanded Metal XS-51 | 1.6 | 2.5 | 61x25 | 1220 | 2440 |
| Expanded Metal XS-52 | 2.3 | 3 | 61x25 | 1220 | 2440 |
| Expanded Metal XS-53 | 3.2 | 4 | 61x25 | 1220 | 2440 |
| Expanded Metal XS-61 | 2.3 | 3 | 76.2x34 | 1220 | 2440 |
| Expanded Metal XS-62 | 3.2 | 4 | 76.2x34 | 1220 | 2440 |
| Expanded Metal XS-63 | 4.5 | 5 | 76.2x34 | 1220 | 2440 |
| Expanded Metal XS-71 | 2.3 | 3.5 | 152.4x50 | 1220 | 2440 |
| Expanded Metal XS-72 | 3.2 | 4 | 152.4x50 | 1220 | 2440 |
| Expanded Metal XS-73 | 4.5 | 5 | 152.4x50 | 1220 | 2440 |
| Expanded Metal XS-81 | 3.2 | 4 | 203.2x75 | 1220 | 2440 |
| Expanded Metal XS-82 | 4.5 | 5 | 203.2x75 | 1220 | 2440 |
| Expanded Metal XS-83 | 6 | 6 | 203.2x75 | 1220 | 2440 |
| Expanded Metal XS-91 | 3.2 | 5 | 304.8X115 | 1220 | 2440 |
| Expanded Metal XS-92 | 4.5 | 6 | 304.8X115 | 1220 | 2440 |
| Expanded Metal XS-93 | 6 | 7 | 304.8X115 | 1220 | 2440 |
Product Features
The features of XS Expanded Metal:
Economical,it is lower cost than perforated and other steel gratings
It is stronger, lighter in weight and more rigid than the original base metal.
The mesh is formed from a single piece of metal
The process is not wasteful of material
Higher strength-to-weight ratio than sheet metal
Scope of application
XS Expanded Metal is quite widely used for both industry and construction,including :
XS-63 Expanded metal for Walkway
XS-53 Expanded Metal for Grating
XS-42,XS-32 expanded metal for safety Gates
XS-71 expanded metal for protection fencing
XS-42,XS32 expanded metal for metal ceilings
XS-52,XS32 expanded metal for architectural balustrade

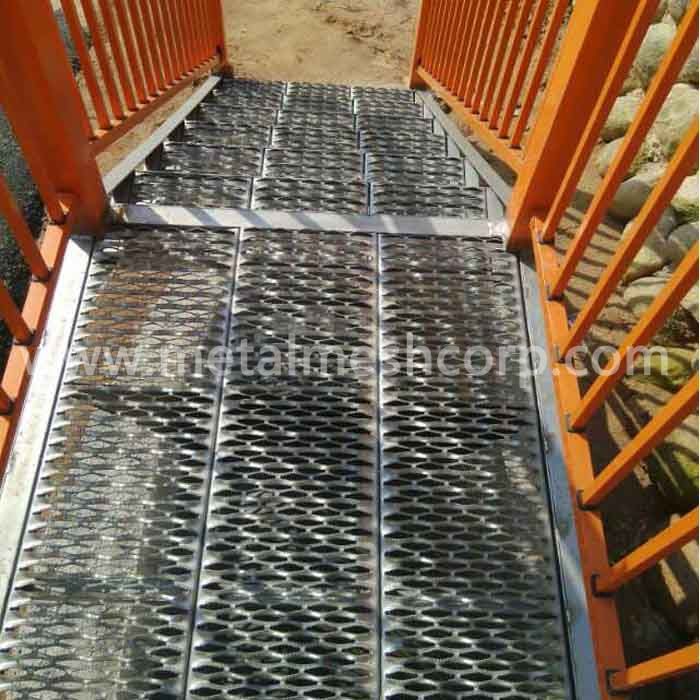

Anti Skid Grip Strut Grating Stair Treads Anti-slip safety grating for walkway, stair treads and platform in industrial. Safety Grating protects worker's safety in industrial and building construction.
