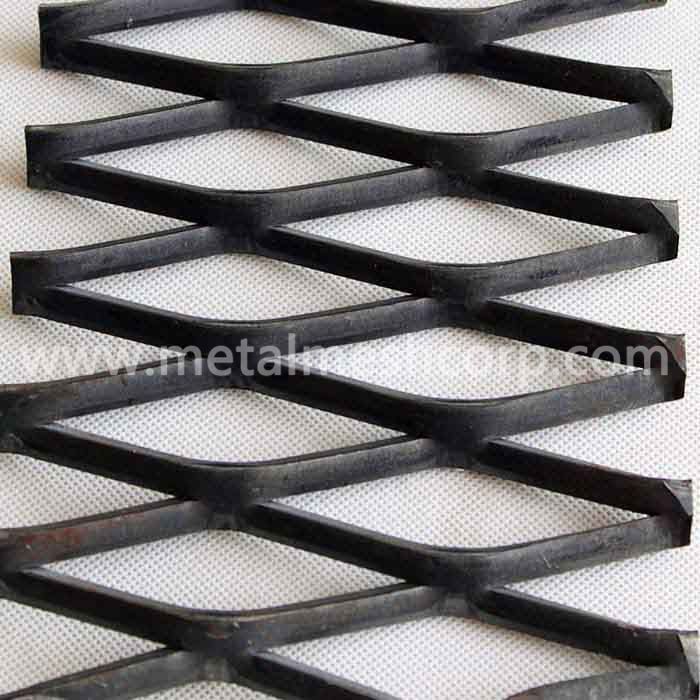

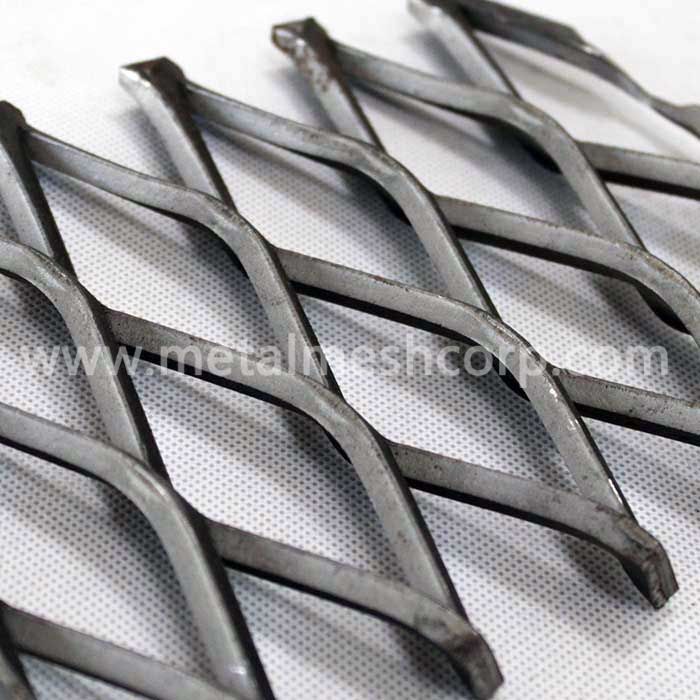

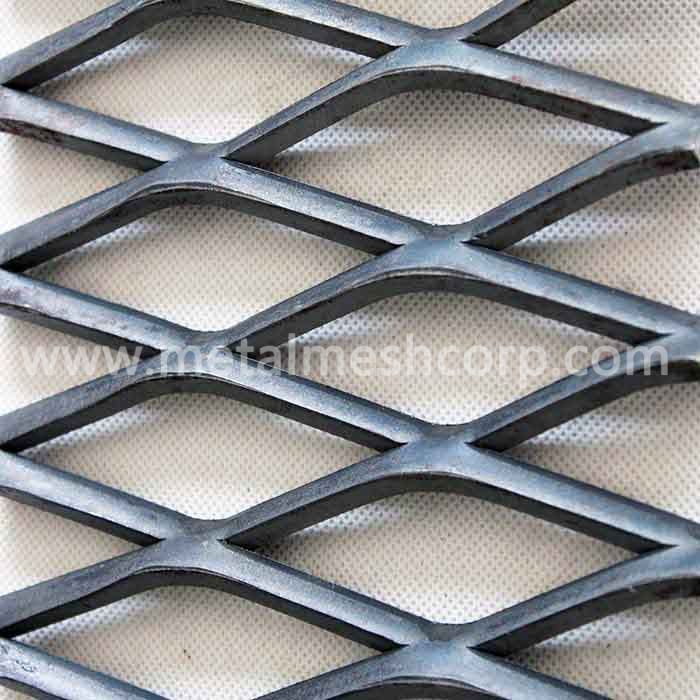

XG Expanded Metal is heavy type than XS expanded metal,and thickness is 4.5mm,6mm and 8mm.Our XG expanded metal is produced with high security and top quality.
Product parameters
When ordering or specifying XG Expanded Metal, please confirm:
• The Style
• Flattened or Raised
• Material
• Sheet Size
Example: Expanded Metal XG-21, Flattened,carbon steel, standard 4' x 8' sheet.
| XG Expanded Metal | Thickness (MM) | Strand (MM) | LWDXSWD (MM) | LWM (MM) | SWM (MM) |
| Expanded Metal XG-11 | 4.5 | 7 | 135.4x34 | 1220 | 2440 |
| Expanded Metal XG-12 | 6 | 7 | 135.4x34 | 1220 | 2440 |
| Expanded Metal XG-13 | 6 | 9 | 135.4x34 | 1220 | 2440 |
| Expanded Metal XG-14 | 8 | 9 | 135.4x34 | 1220 | 2440 |
| Expanded Metal XG-21 | 4.5 | 7 | 101.6x36 | 1220 | 2440 |
| Expanded Metal XG-22 | 6 | 7 | 101.6x36 | 1220 | 2440 |
| Expanded Metal XG-23 | 6 | 9 | 101.6x36 | 1220 | 2440 |
| Expanded Metal XG-24 | 8 | 9 | 101.6x36 | 1220 | 2440 |
Product Features
Features of XG expanded metal:
The mesh is formed from a single piece of metal
The process is not wasteful of material
Higher strength-to-weight ratio than sheet metal
Anti-slip surface
Excludes and retains simultaneously
Premium reinforcement properties
Practical and effective screening
Super corrosion resistance
Scope of application
Applications of XG expanded metal:
Walkway,
Stairtread,
Sidewalk,
Platform in factory.
Drain Grating,
safety guards,
Truck and ramps
Decorative Expanded Metal Mesh for Façade Cladding Aluminum Expanded Metal Mesh is made from aluminum plate that is uniformly punched/slit and stretched, forming openings of diamond / rhombic (standard) shape. Being expanded, the aluminum mesh plate will be in shape for a long time under normal conditions. The diamond-shaped structure and trusses make this type of mesh grille strong and rigid.
