Aluminum Expanded Mesh for Air Filtration

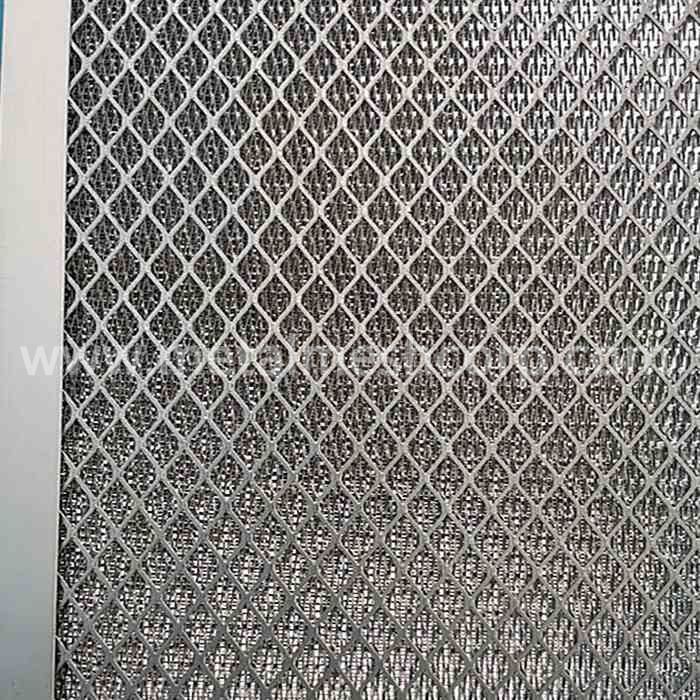

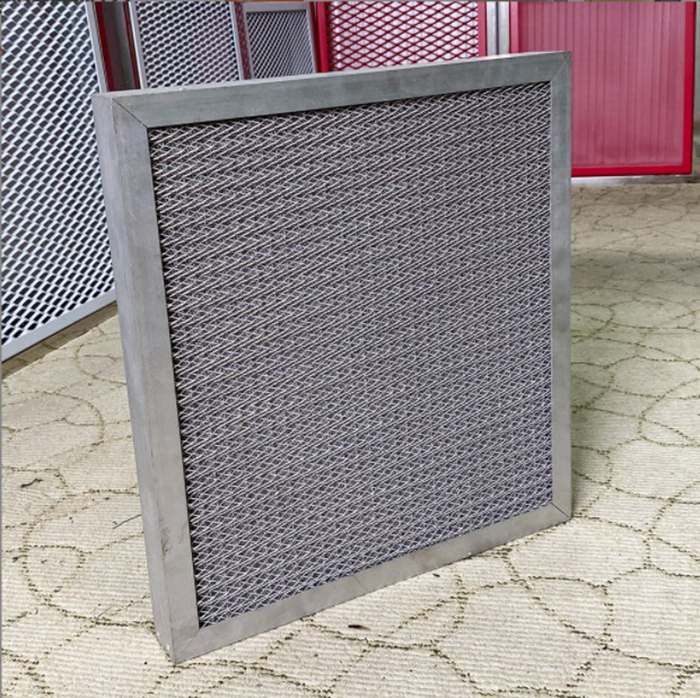

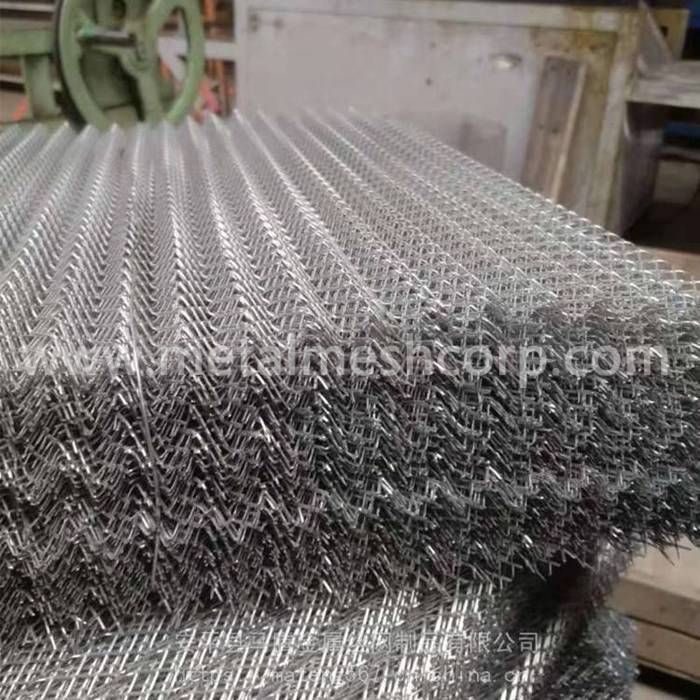

Expanded aluminum coils mesh usually micro expanded metal with aluminum material.The hole opening is small for widely application in air filter,gas filter,liquid filter,lamp cover,gutter guard,decoration,etc.

Product parameters



Micro Expanded Metal Hole Sizes Specification
SWMLWMStrand ThickStrand WidthWidthMaterialMin  Qty
0.50mm0.70mm0.05mm0.10-0.15mm70-100mm304/316/Alum200m2
 0.60mm0.80mm 0.08-0.10mm  0.15-0.20mm 100-200mm304/316/Alum200m2
 0.70mm 1.00mm 0.10-0.15mm 0.15-0.20mm 100-200mm 304/316/Alum200m2
 0.70mm 1.25mm 0.10-0.20mm 0.15-0.25mm 100-250mm 304/316/Alum200m2
 0.90mm 1.50mm 0.10-0.30mm 0.20-.30mm 100-300mm 304/316/Alum200m2
 0.90mm 1.50mm 0.20-0.40mm 0.20-0.40mm100-300mm 304/316/Alum 200m2
 1.00mm 2.00mm 0.15-0.40mm 0.15-0.5mm 150-300mm 304/316/Alum 200m2
 1.40mm 2.00mm 0.15-0.50mm 0.15-0.50mm 150-500mm 304/316/Alum200m2
 1.50mm 2.50mm 0.20-0.50mm 0.20-0.50mm 150-500mm 304/316/Alum 200m2
 2.00mm 3.00mm 0.20-0.60mm 0.20-0.60mm 150-600mm 304/316/Alum 200m2
 2.20mm 3.00mm 0.20-0.60mm 0.20-0.60mm 150-600mm 304/316/Alum 200m2
 2.40mm 3.00mm 0.20-0.60mm 0.20-0.60mm  150-600mm304/316/Alum 200m2
 2.40mm 3.50mm0.20-0.60mm  0.20-0.60mm 150-600mm 304/316/Alum 200m2
 2.40mm 4.00mm0.20-0.60mm  0.20-0.60mm 150-600mm 304/316/Alum200m2
 3.00mm 5.00mm0.20-0.60mm 0.20-0.60mm  150-600mm 304/316/Alum200m2
 3.00mm 6.00mm0.20-0.60mm  0.20-0.60mm 150-600mm304/316/Alum 200m2
 4.00mm 6.00mm 0.20-0.60mm 0.20-0.60mm 150-600mm304/316/Alum200m2
 4.00mm 8.00mm 0.20-0.60mm 0.20-0.60mm 150-600mm304/316/Alum200m2


Product Features

Features of expanded aluminum coil:

  1. High corrosion resistance

  2. High current efficiency

  3. High durability

  4. Base Metal can be cycle used

  5. High current density, high productivity

  6. Light weight


Scope of application

  1. Cooling ventilation covers

  2. mechanical transmission,

  3. protective covers for vehicles, air compressors, etc.,

  4. audio speaker,

  5. filters tube,filter discs,

  6. air conditioning equipment,

  7. satellite antennas,

  8. outdoor furniture,

  9. mechanical equipment protection
