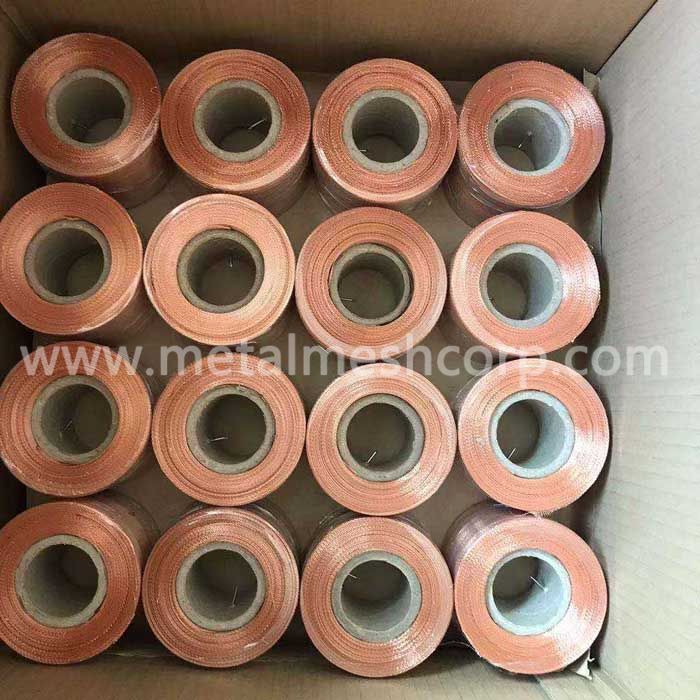

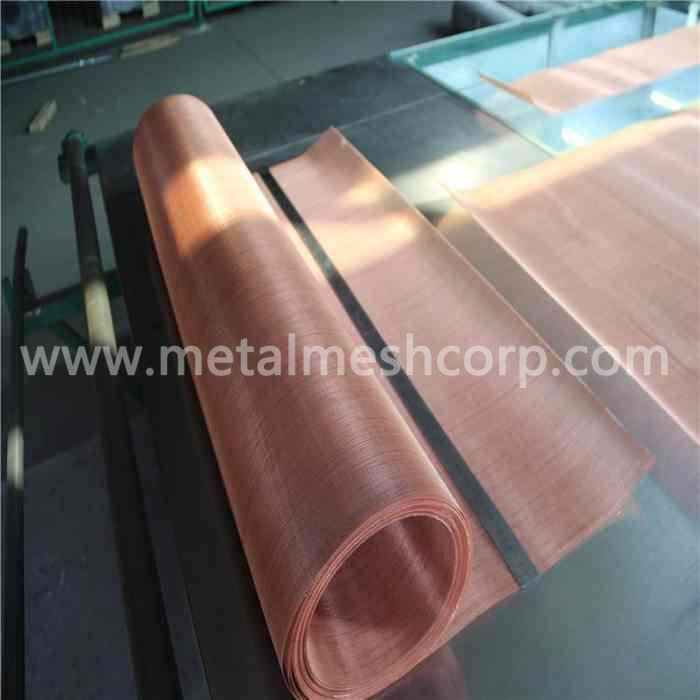

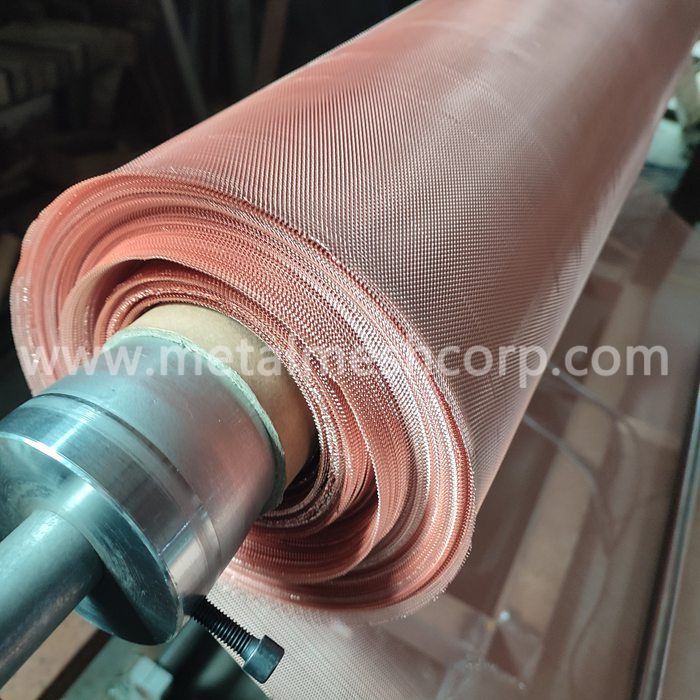

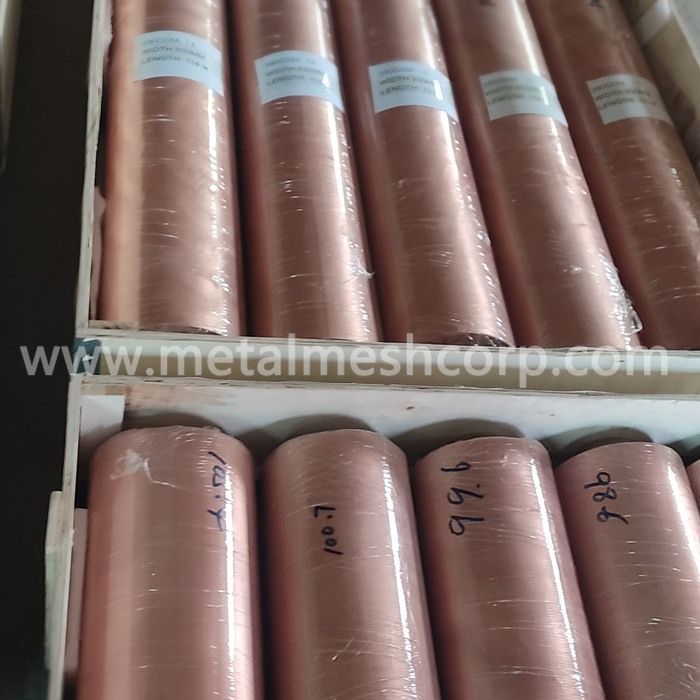

Expanded Copper Mesh

AISN copper Expanded Copper Mesh foils are the materials of choice for lightning strike protection in composite aircraft structures,EMI Shielding,Aerospace,Battery Mesh.


Product parameters

Micro Aluminum Expanded Mesh for lightning strike protection

AISN Code

AISNAL-66F

AISNAL-107

AISNAL-141F

AISNAL-195F

Weight(g/sqm)

66

78

78

136

Metal thickness

0.051mm

0.102mm

0.102mm

0.127mm

LWD

1.905mm

2.032mm

2.032mm

2.032mm

Overall thickness

0.051mm

0.152mm

0.102mm

0.152mm

Open area

52%

71%

71%

60%


Flattened

Leveled

Flattened

Flattened

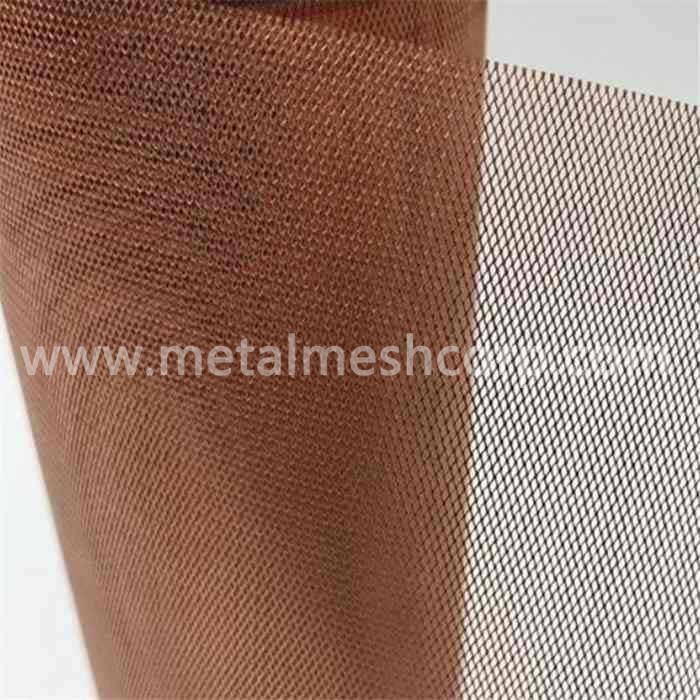

Micro Expanded Copper Mesh Foil for lightning strike protection

AISN Code

AISNCU-66

AISNCU-107

AISNCU-141

AISNCU-195

Weight(g/sqm)

73

107

141

195

Metal thickness

0.051mm

0.051mm

0.076mm

0.076mm

LWD

2.54mm

2.54mm

3.175mm

2.54mm

Overall thickness

0.102mm

0.127mm

0.127mm

0.127mm

Open area

84%

76%

79%

70%


Annealed

Annealed

Annealed

Annealed


Flattened Micro Expanded Copper Mesh Foil for lightning strike protection

AISN Code

AISNCU-66F

AISNCU-107F

AISNCU-141F

AISNCU-195F

AISNCU-175F

Weight(g/sqm)

73

107

141

195

175

Metal thickness

0.051mm

0.051mm

0.076mm

0.076mm

0.041mm

LWD

2.54mm

2.54mm

3.175mm

2.54mm

2.54mm

Overall thickness

0.051mm

0.051mm

0.076mm

0.076mm

0.045mm

Open area

84%

76%

79%

70%

52%


Flattened

Annealed

Flattened

Annealed

Flattened

Annealed

Flattened

Annealed

Flattened

Annealed


Product Features

Carbon fiber is commonly used in modern aircraft,without the surface protection,it is easy to damaged by lightning strikes.However,the consequences of lightning strikes are expensive to repair and difficult to diagnose.Then expanded copper mesh foil or aluminum expanded metal foil is used for exterior aircraft composites,and applied near the surface of the laminate schedule.When the lightning strikes occur,the copper expanded mesh is more conductive the underlying carton layers,the damage is readily visible at the parts surface.


Scope of application

Application of Expanded Copper Mesh Foil:

  • Aerospace

  • Wind Energy

  • Battery mesh

  • Electrolyzer

  • Filtration

  • EMI shielding

  • Automotive

  • flue gas denitrification
