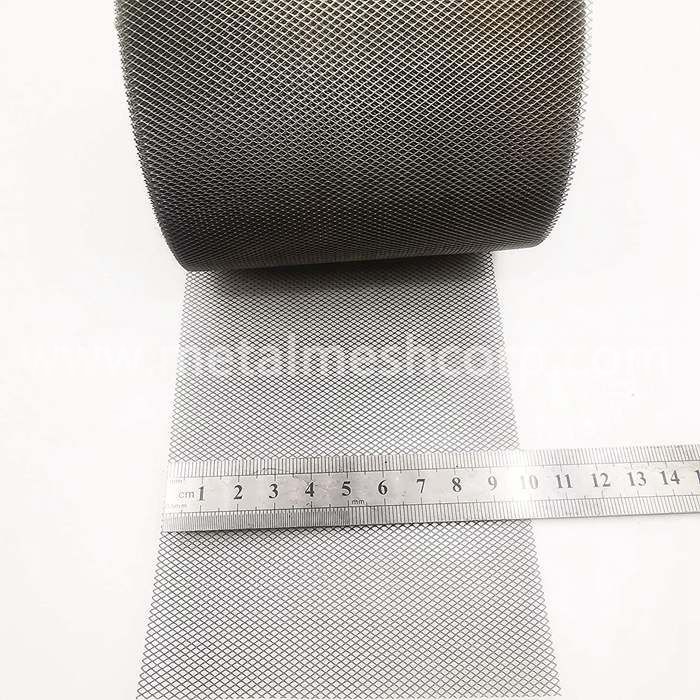

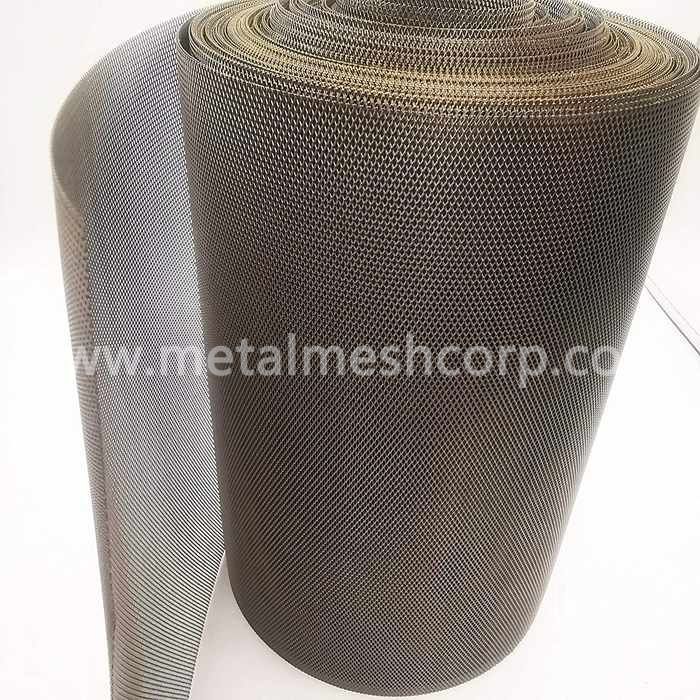

Expanded Titanium Mesh

Our factory produce expanded titanium mesh foils that match performance characteristics for your dimensional, conductivity, weight or strength demands.

Product parameters

Specifications of expanded titanium mesh
Tickness(mm)SWD(mm)LWD(mm)Wire stems width(mm)Width(m)Length(m)Weight(kg/m2)
0.52.54.50.50.511.8
0.510250.50.620.73
0.6102510.621
0.8102510.621.25
110251.10.621.77
115401.5241.85
1.210251.1242.21
1.215401.5242.3
1.515401.51.842.77
1.523602.623.62.77
218502.1243.69
222602.6243.69
340803.8245



Product Features

Expanded titanium mesh is mainly used for sieving and filtration or gas, liquid filtration and other media separation under acid and alkali environmental conditions. In the environment of corrosion-resistant medium, the surface of pure expanded titanium mesh forms a dense, strong adhesion and inert oxide film, which produces passivation and protects the titanium wire mesh matrix from corrosion, thereby achieving strong corrosion resistance; Especially in the following use environments, the corrosion resistance is more excellent

Scope of application

Expanded titanium mesh can be used in :

  • high temperature resistant filter mesh,

  • shipbuilding,

  • military manufacturing,

  • chemical filter mesh,

  • mechanical filter element,

  • electromagnetic shielding mesh,

  • seawater desalination filter mesh,

  • high temperature electric furnace heat treatment mesh,

  • petroleum filter mesh, food processing,

  • pharmaceutical filtration,
