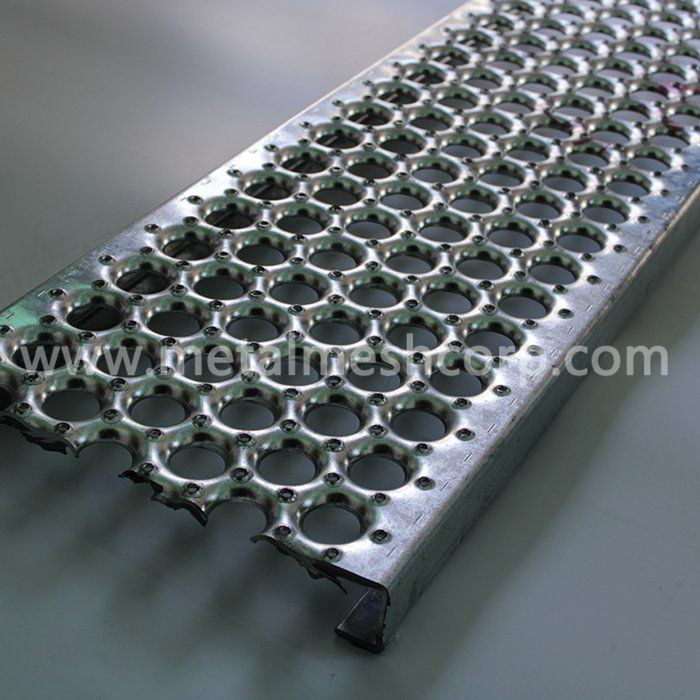

Perf-O Grip Safety Grating offers a unique surface of large debossed holes and perforated buttons providing maximum slip protection and performance under practically all conditions and in every direction.
Parameters and Specifications for Per-O Grip Strut Gratings
Perf-O Grip is a plank metal grating offering a slightly less aggressive surface than Grip Strut.Per-O Grip is made with a round hole pattern Perf-O Grip’s light weight and resilient design makes the product easy to handle and install producing a very economical installed cost.
Standard channel width:2-Hole Plank,3-Hole Plank,5-Hole Plank,6-Hole Plank,10-Hole Plank,13-Hole Plank,16-Hole plank,etc.
Standard Channel Length:10’ and 12’
Normally Used Material:Aluminum,Stainless Steel,Galvanized Steel,etc.
|Material||Thickness||Channel Width - Perf-O Hole No.||Bending Height||Folding||Length|
|5" - 2 Round Hole||30mm|
|Standard 12' MAX 24'|
|7" - 3 Round Hole|
|9" - 4 Round Hole|
|10" - 5 Round Hole|
|12" - 6 Round Hole|
|13.5" - 8 Round Hole|
|18" - 10 Round Hole|
|24" - 13 Round Hole|
|30" - 16 Round Hole|
Features of Perf-O Grip Strut Safety Gratings
Light, easy to handle planks make installation easy
Versatility due to multiple finish options and a variety of standard configurations
Large open area allows debris to drain away
Walkways meet OSHA requirements for toeboards on elevated structures
Resilient surface lessens worker fatigue
High strength-to-weight ratio
Scope of application
Applications and Usages of Perf-O Grip Strut Gratings:
Grip Strut Gratings is used well for sewage treatment,for running water and power plant,also used for outdoor of many other lines,such as safety grating for vehicles,steppes for train,safety stair treads for machines and for interior decoration.
Our anti-skid stair treads patterns improves and increase continuously,with higher and higher consciousness of people,even many factories offer injury insurance for the workers to avoid the loss that the accident injury brings,however,it is hard to stop the incident rates that workers injured.In this function,safety grating owns excellent anti skidding ability,also high load capability and great anti-pressure ability decrease the injury rates greatly and guarantee the safe running of the workshop.
