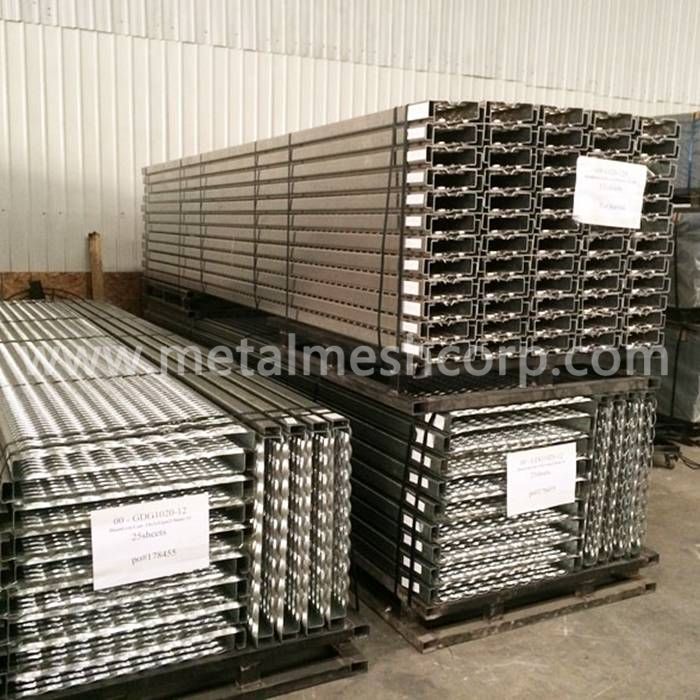

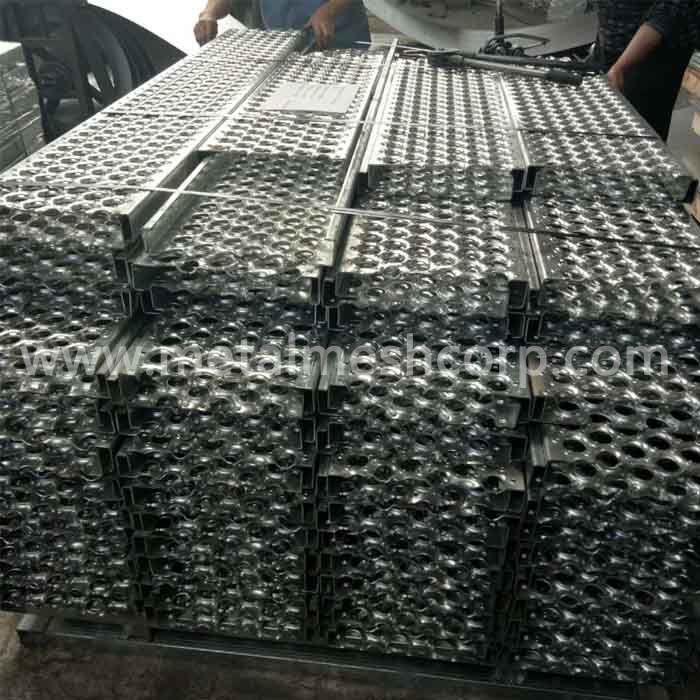

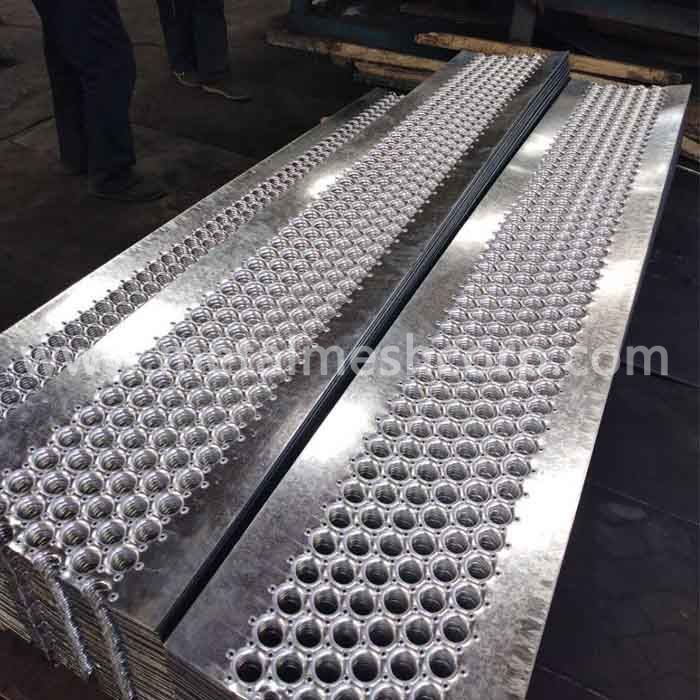

Perf-O Grip Walkway Channels

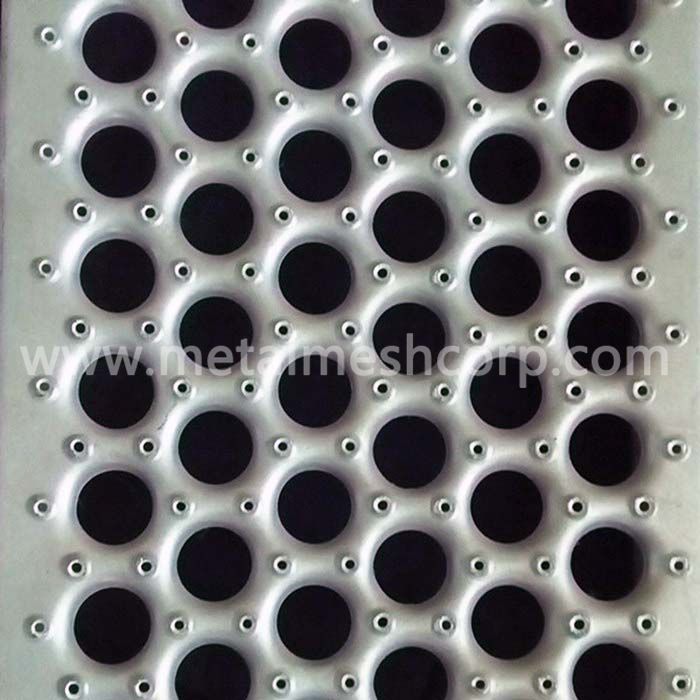

Perf-O Grip Safety Grating offers a unique surface of large debossed holes and perforated buttons providing maximum slip protection and performance under practically all conditions and in every direction.

Product parameters

Parameters and Specifications for Per-O Grip Strut Gratings

Perf-O Grip is a plank metal grating offering a slightly less aggressive surface than Grip Strut.Per-O Grip is made with a round hole pattern Perf-O Grip’s light weight and resilient design makes the product easy to handle and install producing a very economical installed cost.

Standard channel width:2-Hole Plank,3-Hole Plank,5-Hole Plank,6-Hole Plank,10-Hole Plank,13-Hole Plank,16-Hole plank,etc.

Standard Channel Length:10’ and 12’

Normally Used Material:Aluminum,Stainless Steel,Galvanized Steel,etc.

MaterialThicknessChannel Width -   Perf-O Hole No.Bending HeightFoldingLength
Galvanized
    Aluminum
    Stainless Steel
    Carbon Steel
2mm
    2.5mm
    3mm
    3.5mm
5" - 2 Round   Hole30mm
    35mm
    40mm
    45mm
    50mm
    55mm
    .....
    100mm
15mm
    20mm
    25mm
Standard   12'         MAX 24'
7" - 3 Round Hole
9" - 4 Round Hole
10" - 5 Round Hole
12" - 6 Round Hole
13.5" - 8 Round Hole
18" - 10 Round Hole
24" - 13 Round Hole
30" - 16 Round Hole


Product Features

Features of Perf-O Grip Strut Safety Gratings

  • Light, easy to handle planks make installation easy

  • Versatility due to multiple finish options and a variety of standard configurations

  • Large open area allows debris to drain away

  • Walkways meet OSHA requirements for toeboards on elevated structures

  • Resilient surface lessens worker fatigue

  • High strength-to-weight ratio


Scope of application

Applications and Usages of Perf-O Grip Strut Gratings:

Grip Strut Gratings is used well for sewage treatment,for running water and power plant,also used for outdoor of many other lines,such as safety grating for vehicles,steppes for train,safety stair treads for machines and for interior decoration.

Our anti-skid stair treads patterns improves and increase continuously,with higher and higher consciousness of people,even many factories offer injury insurance for the workers to avoid the loss that the accident injury brings,however,it is hard to stop the incident rates that workers injured.In this function,safety grating owns excellent anti skidding ability,also high load capability and great anti-pressure ability decrease the injury rates greatly and guarantee the safe running of the workshop.
