Grip strut safety grating including various hole design, including perf-O strut grating

Mar. 08, 2019
Share:

Grip strut safety grating including various hole design, including perf-O strut grating, embossed hole safety grating, traction tread stair treads,and perforated walkway grating.


Grip strut safety grating or grip-span gratings is a produced from a one-piece steel, then after CNC punching and bending, it will become a plank grating. The non-slip surface diamond grating, may have serrated surface, and load-supporting continuous channel at everywhere.


Grip strut stair treads usually a plank grating with cutting size, and bending around for stair treads or platform. Often easily for installation,and with better bearing capacity.


Perf-O grip strut is another hole design different with diamond grip strut, but the channel size can be same. Perforated O type grip strut has bigger open area, and can used for each direction for walkway. It also has good slip restance suface with 6 small dimpled hole around a big dimpled hole, around 33mm diameter.


• Grip Strut Plank grating option-
1.5" and 2.0" channel heights
5", 7", 10", 12", 18" and 24" widths
• Perforated Walkway grating option-
5.0" channel heights
24", 30" and 36" widths
• Stainless Steel available upon request and special quotation
• Hot Dip Galvanized after fabrication is available upon request and special quotation
• Special fabrication, cutting or specialty configurations available upon request


Grip strut safety grating including various hole design, including perf-O strut gratingGrip strut safety grating including various hole design, including perf-O strut gratingGrip strut safety grating including various hole design, including perf-O strut gratingGrip strut safety grating including various hole design, including perf-O strut grating

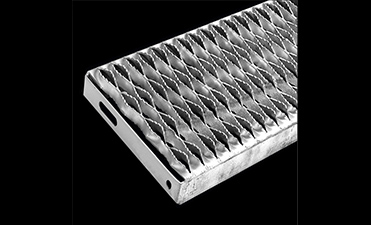

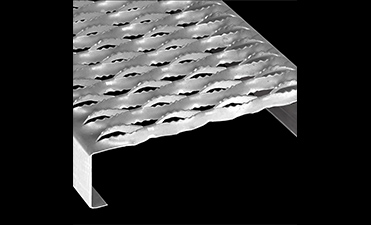

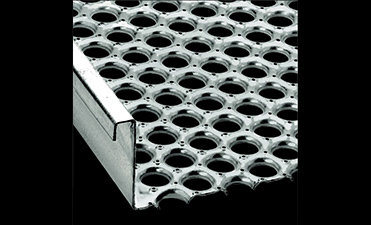

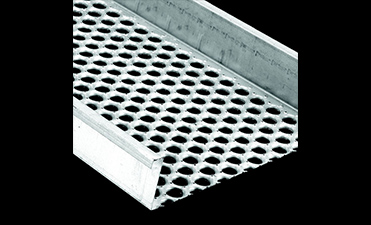

Diamond Traction Tread Stair TreadsPerf O Grip Strut Plank WalkwayPerforated Metal PlankPerforated Plank Walkway
Grip strut safety grating including various hole design, including perf-O strut gratingGrip strut safety grating including various hole design, including perf-O strut gratingGrip strut safety grating including various hole design, including perf-O strut grating

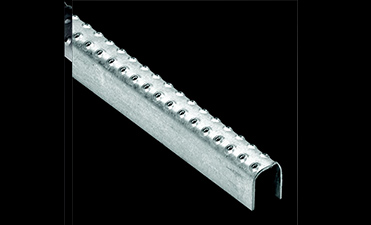

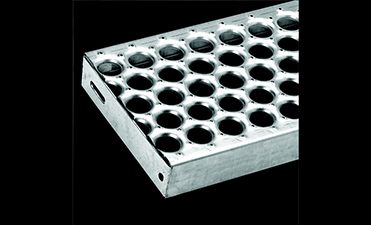

Slip Resistance Perf O Plank Stair TreadsStainless Steel Ladder RungsTwo Holes Ladder Rungs
