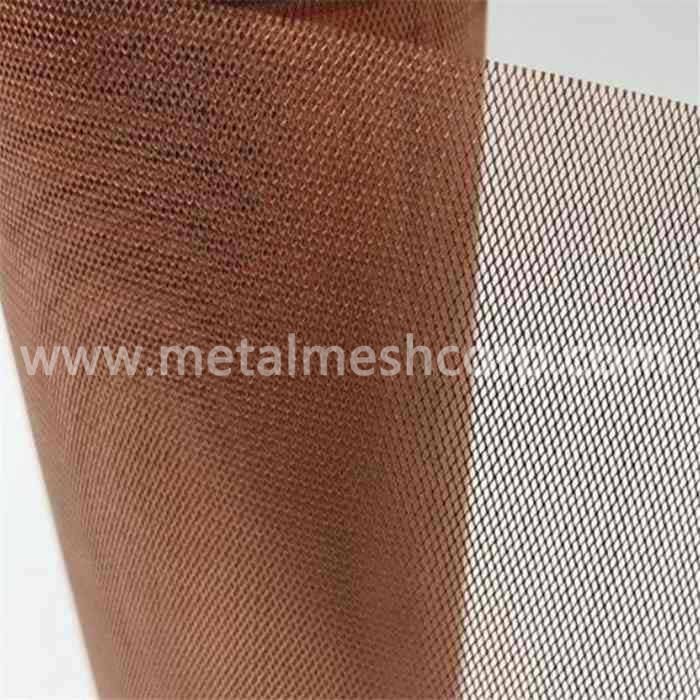

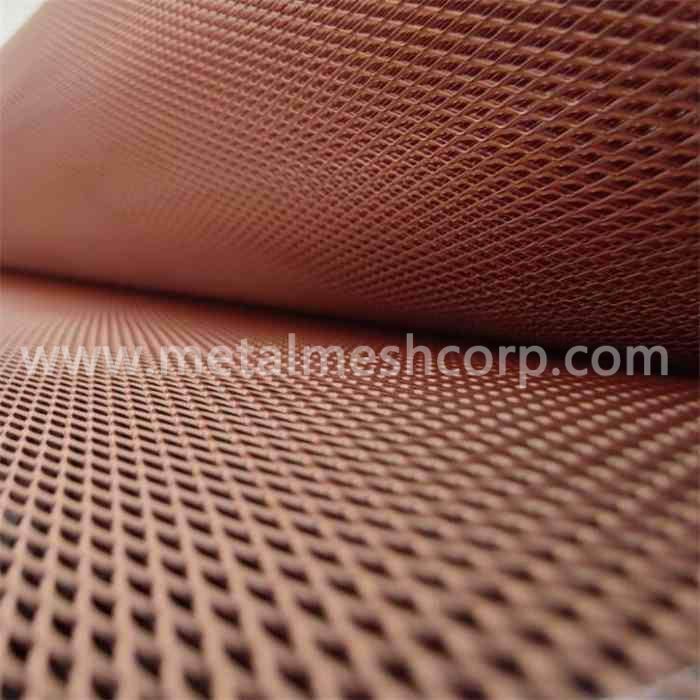

AISN copper expanded metal sheets are the materials of choice for lightning strike protection in composite aircraft structures.
Product parameters
Copper expanded metal sheet for lightning strike protection | ||||
AISN Code | AISNCU-66 | AISNCU-107 | AISNCU-141 | AISNCU-195 |
Weight(g/sqm) | 73 | 107 | 141 | 195 |
Metal thickness | 0.051mm | 0.051mm | 0.076mm | 0.076mm |
LWD | 2.54mm | 2.54mm | 3.175mm | 2.54mm |
Overall thickness | 0.102mm | 0.127mm | 0.127mm | 0.127mm |
Open area | 84% | 76% | 79% | 70% |
Annealed | Annealed | Annealed | Annealed | |
Expanded metal sheet for EMI Sheilding | |||||
AISN Code | AISNCU-66F | AISNCU-107F | AISNCU-141F | AISNCU-195F | AISNCU-175F |
Weight(g/sqm) | 73 | 107 | 141 | 195 | 175 |
Metal thickness | 0.051mm | 0.051mm | 0.076mm | 0.076mm | 0.041mm |
LWD | 2.54mm | 2.54mm | 3.175mm | 2.54mm | 2.54mm |
Overall thickness | 0.051mm | 0.051mm | 0.076mm | 0.076mm | 0.045mm |
Open area | 84% | 76% | 79% | 70% | 52% |
Flattened Annealed | Flattened Annealed | Flattened Annealed | Flattened Annealed | Flattened Annealed | |
Product Features
The electromagnetic shielding machine room assembled with copper expanded metal sheet is light weight, fast installation, reliable in electromagnetic sealing, strong in assembly and disassembly process, and at the same time, it meets the needs of ventilation and lighting.
The biggest advantage of electromagnetic shielding machine room assembled with expanded copper mesh is the low cost.
As an important lightning protection method, copper expanded metal mesh has achieved very important applications in aircraft.
Scope of application
Widely application of copper expanded metal sheet:
Wind Energy
Battery mesh
Electrolyzer
Filtration
EMI shielding
Automotive
flue gas denitrification

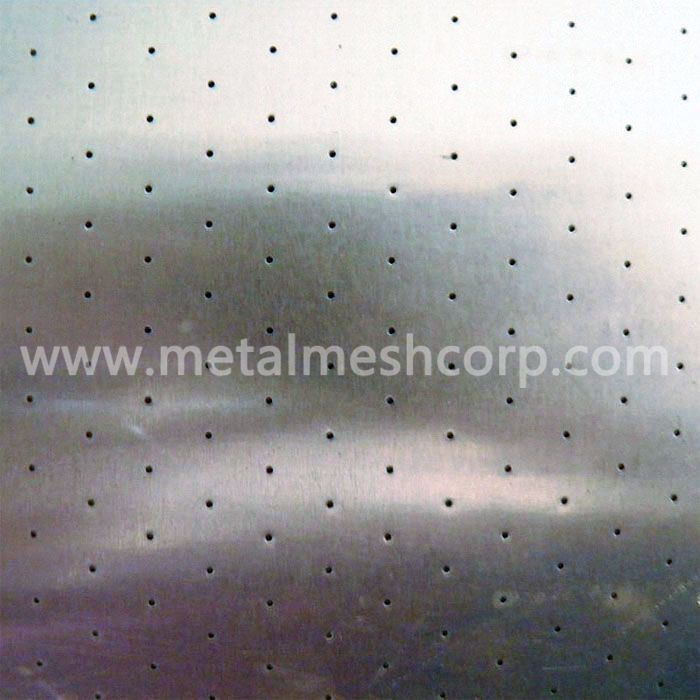

Stainless Steel 304 Perforated Sheet Stainless Steel 304 Perforated Sheet, which is made of austenitic, ferritic or martensitic steel, can be produced with various hole types and different gauges.
