Home / Products / Architectural Mesh / Aluminum Expanded Mesh

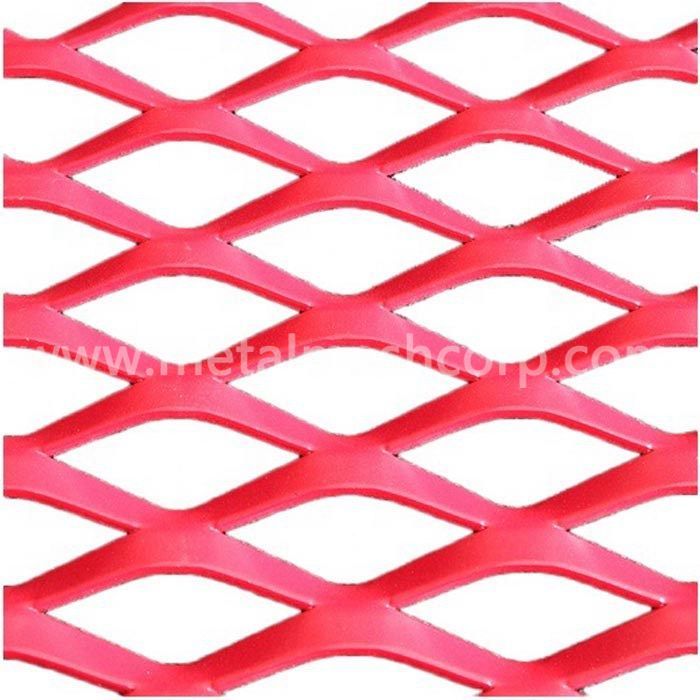

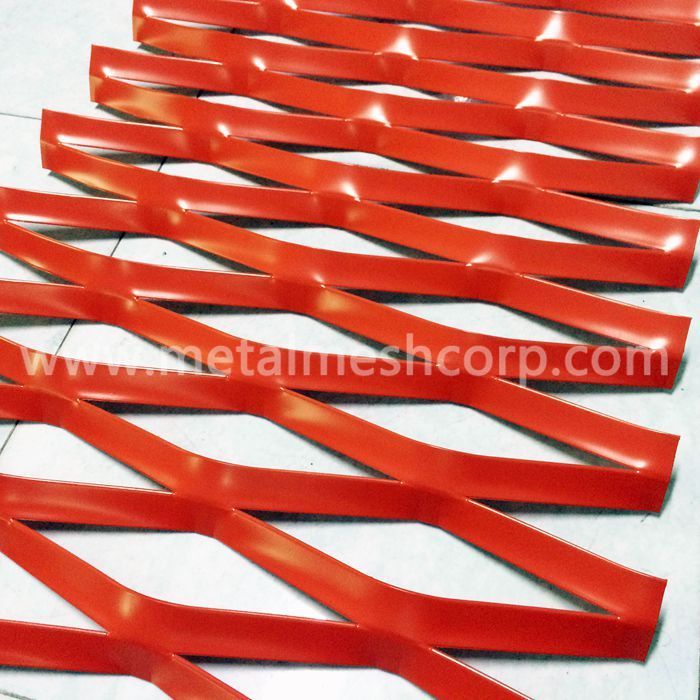

Powder Coated Aluminum Expanded Metal Mesh

We can fabricate Powder Coated Aluminum Expanded Metal Mesh in standard and flattened, heavy duty and light duty metal mesh types and in a variety of patterns, designs and sizes.

Product parameters

Specifications for Powder Coated Aluminum Expanded Metal Mesh
Product nameAluminum Expanded   Metal Mesh
MaterialAluminum Sheet,Alum   ally 3003,Alum ally5052.
Thickness0.3-10.0mm
Hole shapeDiamond,square hole,scale hole,gothic etc.
Mesh Size1220*2440mm,1200*2400mm,1000*2000mm or   customized

Surface Treatment

for aluminum expanded metal

mesh

1.PVC coated
    2.Powder coated
    3.Anodized
    4.Paint
    5.Fluorocarbon spraying
    6.Polishing

Package for

aluminum expanded

metal mesh

1.On   pallet with waterproof cloth,the biggest width is 1500mm
    2.In wooden case with waterproof paper
    3.In carton box
    4.In roll with woven bag,the biggest width is 3000mm
    5.In bulk or In bundle
CertificationISO9001, ISO14001, BV   ,SGS  certificate

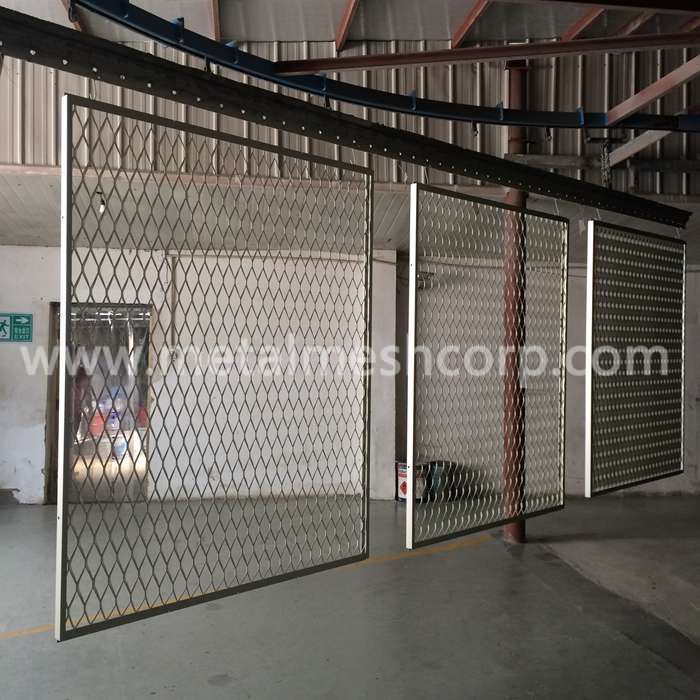

Architectural Powder Coated Aluminum Expanded Metal Mesh

PVDF coated aluminum Expanded Metal Mesh

Pls provide below sizes of LWDXSWD,Strand,thickness when ordering Powder Coated Aluminum Expanded Metal Mesh.

PVDF coated aluminum Expanded Metal Mesh

Pls provide if you need to weld frame when you ordering Powder Coated Aluminum Expanded Metal Mesh

PVDF coated aluminum Expanded Metal Mesh


Product Features

Features of Powder Coated Aluminum Expanded Metal Mesh
1.Continuity--the   mesh is formed from a single piece of metal
    2.Environment friendly--no wasteful of material
    3.High strength--higher strength to weight ration then metal sheet
    4.Adherence--anti slip surface
    5.Very  good noise and fluid   filtration--excludes & retains simultaneously
    6.Good rigidity--premium reinforcement properties
    7.Good conductivity--highly efficient conductor
    8.Screening--practical and effective light filtration
    9.Good resistance to corrosion


Scope of application

Application of Powder Coated Aluminum Expanded Metal Mesh
1.Fence,panels & grids;
    2.Walkways;
    3.Protections &barres;
    4.Industrials & fire stairs;
    5.Metallic walls;
    6.Metallic ceilings;
    7.Grating & platforms;
    8.Metallic furniture;
    9.Balustrades;
    10.Containers & fixtures;
    11.Facade screening;
    12.Concrete stopers
